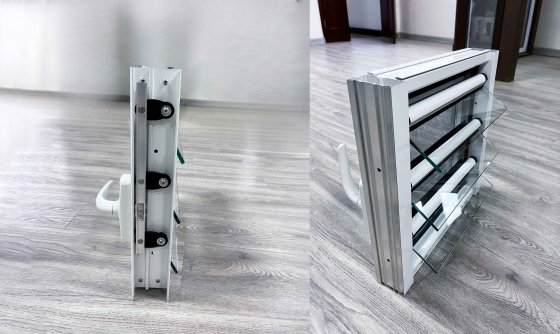

Introduction: Meet the GLW70

When a space demands natural light, adjustable airflow, and protection from the elements in equal measure, conventional windows force a compromise. Casement and sliding windows prioritize sealing over ventilation. Fixed glass prioritizes views over breathability. The Glass Louver Window 70 — GLW70 — from Qingdao Honor Building Products breaks that trade-off.

Built on a 70mm aluminum frame depth with corrosion-resistant construction and fully adjustable tempered glass blades, the GLW70 is a purpose-designed solution for coastal, tropical, and high-humidity environments. It delivers the openness of a fixed window and the ventilation of a louver system — in one unit, with no moving sash to swing, slide, or obstruct.

1. GLW70 — Full Product Specifications

When a space demands natural light, adjustable airflow, and protection from the elements in equal measure, conventional windows force a compromise. Casement and sliding windows prioritize sealing over ventilation. Fixed glass prioritizes views over breathability. The Glass Louver Window 70 — GLW70(对应链接：https://www.glass-window.com/glass-louver-window-glw70.html) — from Qingdao Honor Building Products breaks that trade-off.

Built on a 70mm aluminum frame depth with corrosion-resistant construction and fully adjustable tempered glass blades, the GLW70 is a purpose-designed solution for coastal, tropical, and high-humidity environments. It delivers the openness of a fixed window and the ventilation of a louver system — in one unit, with no moving sash to swing, slide, or obstruct.

1. GLW70 — Full Product Specifications

Frame & Construction

Performance Characteristics

Dimensions & Configurations

The GLW70 is fabricated to order. Standard configurations include:

• Width range: 400 mm to 2,400 mm (single unit; larger via coupled multiples)

• Height range: 400 mm to 2,000 mm (single unit)

• Blade count: Typically 3 to 12 blades per unit, depending on height

• Blade width: Standard 100 mm, 150 mm, or 200 mm glass blades

• Mounting type: Surface-mount or recessed into wall opening

Multiple GLW70 units can be joined horizontally with coupling mullions to create continuous louver walls spanning several meters.

2. Four Reasons GLW70 Outperforms Conventional Windows

Reason 1: True Adjustable Ventilation — Not “Open or Closed”

A casement window has two positions: fully open (swung out, vulnerable to wind and rain) or fully closed (sealed, zero airflow). A sliding window gives you maybe three positions. The GLW70 gives you infinite intermediate positions. Crack the blades open 10° for passive airflow during a light drizzle. Open them 45° for steady cross-breeze. Open fully at 90° for maximum ventilation on a still day. In every position, the glass blades continue to shed rain outward — a fundamental advantage over any sash-based window.

Reason 2: Corrosion-Resistant Aluminum — Engineered for Salt and Humidity

Standard aluminum window frames rely on surface coatings for corrosion protection. Once the coating is scratched or weathered, pitting begins. The GLW70 uses a marine-grade aluminum alloy with enhanced corrosion resistance at the material level, not just the surface. Stainless steel hardware at every pivot and connection point eliminates galvanic corrosion risk between dissimilar metals.

Installations in the Bahamas, Jamaica, Saint Lucia, and the Philippines— all high-salinity, high-humidity environments — validate the design. These are not theoretical test-lab conditions; they are real-world deployments where cheaper alternatives fail within two to three rainy seasons.

Reason 3: Unobstructed Views — The Cleanest Sightlines of Any Operable Window

Fixed picture windows offer the clearest views but cannot be opened. Casement and sliding windows have central mullions, sash frames, and opening hardware that interrupt sightlines. The GLW70 has none of that. The frame exists only at the perimeter. The glass blades, when open, angle outward and remain fully transparent — you see through them, not around them. When closed, the blades form a near-seamless glass wall from top to bottom.

For beachfront properties, hillside homes, and resort architecture where the view is the primary asset, this is a decisive advantage.

Reason 4: Lightweight, Modular, and Installation-Friendly

Aluminum’s strength-to-weight ratio means a GLW70 unit weighs significantly less than a comparably sized steel louver window or multi-sash UPVC assembly. This reduces structural load on the building, simplifies handling during installation, and lowers shipping costs for export. The modular design — individual blades mounted in a continuous frame — also means that if a single blade is ever damaged, it can be replaced independently without removing the entire window.

3. GLW70 vs. Conventional Window Types — At a Glance

4. Where GLW70 Excels — Application Scenarios

Coastal Residential

Beach houses, island homes, and waterfront properties demand three things: corrosion resistance (salt spray destroys standard hardware within years), ventilation (sea breezes are free cooling — use them), and storm resilience (windows must seal tight when tropical weather hits). GLW70 addresses all three natively. Installations in the Bahamas, Jamaica, and Saint Lucia have proven the system across multiple hurricane seasons.

Tropical Resorts & Hospitality

Open-air lobbies, poolside bars, spa treatment rooms, and guest suites in tropical resorts benefit from the GLW70’s ability to create an indoor-outdoor feel without surrendering weather protection. The glass blades maintain views of landscaping, ocean, or garden while controlling airflow. When a storm passes through, staff close the louvers from inside — no need to secure external shutters.

Sunrooms, Enclosed Patios & Breezeways

These transitional spaces sit between indoors and outdoors. Fixed glass turns them into greenhouses on hot days. Screen-only enclosures offer no weather protection. The GLW70 gives occupants control: open for breeze, close for rain, adjust for comfort — all from a single crank operator.

Utility & Service Rooms

Laundry rooms, generator sheds, pump houses, and commercial kitchens generate heat and moisture that need to escape. Powered exhaust fans add cost, noise, and maintenance. GLW70 louvers provide passive ventilation 24/7, with the option to fully close during storms or cold snaps.

Retrofit & Renovation Projects

Because GLW70 units are lightweight and modular, they place less demand on existing wall structures than heavy multi-pane window assemblies. This makes them a practical choice for retrofitting older buildings — particularly in historic districts where structural modifications are restricted and natural ventilation was part of the original design intent.

5. GLW70 Maintenance Guide

The GLW70 is designed for low-maintenance operation, but a consistent routine will maximize its 20–30 year service life. Below is a practical maintenance schedule organized by frequency.

Routine — Every 3 Months

Seasonal — Twice Per Year

Long-Term — Every 2–3 Years

• Replace EPDM blade gaskets proactively in high-UV or high-salt environments. Gaskets are inexpensive; water damage from a failed seal is not.

• Inspect and lubricate the crank operator gearbox. Use a PTFE-based dry lubricant — wet lubricants attract dust and grit that accelerate gear wear.

• Check frame-to-wall anchor points. Thermal expansion and contraction cycles can loosen fixings over time. Re-torque as needed.

• Touch up frame coating. In coastal environments, any scratch that exposes bare aluminum should be addressed with matching touch-up paint to prevent pitting.

• Blade condition audit. Check every glass blade for edge chips or cracks. Replace damaged blades individually — the modular design makes this a 10-minute job per blade.

Quick Do’s and Don’ts

6. Frequently Asked Questions

About the GLW70

Q: What does “70” mean in GLW70?

The frame depth is 70 mm. This provides the structural rigidity needed for multi-blade configurations while maintaining a slim profile that does not dominate the wall opening.

Q: What glass options are available?

Standard: 6 mm clear tempered glass. Optional: tinted (grey, bronze, green), or laminated safety glass.

Q: Can GLW70 blades be opened from both sides?

The standard configuration uses a single-side manual handle operator mounted on the interior frame. Dual-side or remote-operated configurations can be discussed for specific projects.

Q: Is the GLW70 suitable for air-conditioned spaces?

Yes. When closed, the interlocking EPDM-gasketed blades form a continuous seal. For air-conditioned environments, specify low-E glass blades to reduce solar heat gain. The GLW70 is not a replacement for a thermally broken fixed window in extreme cold climates, but in tropical and subtropical settings where ventilation is the primary need and AC is supplementary, it performs well.

Q: How does the GLW70 perform in high winds?

The 70mm aluminum frame and multi-point blade anchoring distribute wind load across the entire unit rather than concentrating it on hinges or latches. For projects in hurricane-prone zones (e.g., the Bahamas, Jamaica), reinforced frame options and impact-rated laminated glass blades can be specified. Contact Honor with your local wind-load code requirements during the quotation phase.

Q: Can I replace a single broken blade myself?

Yes. The modular design means individual blades can be removed and replaced without disassembling the frame. Honor can supply replacement blades cut to your unit’s exact dimensions. The procedure involves removing the blade’s pivot pins, sliding the old blade out, inserting the new one, and re-securing the pins — typically a 10-minute job.

Q: What frame colors and finishes are available?

Powder-coated finishes in standard RAL colors (white, black, grey, bronze, and custom matches). Anodized finishes in silver, champagne, and bronze. Wood-grain transfer finishes are also available for projects requiring a natural aesthetic.

Ordering & Logistics

Q: What is the minimum order quantity?

The GLW70 is fabricated to order. MOQs vary by configuration, glass specification, and finish. Contact Honor directly with your project dimensions and quantities for a quotation.

Q: How are GLW70 units packed for export?

Each unit is individually wrapped, corner-protected, and packed in plywood crates. Glass blades are secured in the closed position with foam spacers to prevent transit vibration damage. Standard shipping is FCL (full container load) from Qingdao Port — one of China’s top-10 container ports, ensuring frequent sailings to major destinations worldwide.

Q: What lead time should I expect?

Typical lead time is 4–6 weeks from order confirmation to ex-works, depending on quantity and specification complexity. Add shipping transit time based on destination. Contact Honor for current production scheduling.

Q: Does Honor provide installation support?

Each GLW70 shipment includes a printed installation manual with dimensional drawings, anchoring specifications, and blade adjustment instructions. For large projects, on-site supervision or installation training can be arranged.

7. About Qingdao Honor Building Products

Qingdao Honor Building Products is a professional group fabricator of UPVC and aluminum window and door systems, founded in 2015 and headquartered in Qingdao, Shandong Province, China.

What We Make

Where We Ship

Our products are installed in Germany, Cyprus, the United States, the Bahamas, Jamaica, Saint Lucia, Chile, Bolivia, the Philippines, and additional markets through distributor and contractor relationships. This geographic range — from European code-compliance environments to Caribbean hurricane zones — reflects the versatility and build quality of our product line.

Who We Work With

Distributors, retailers, contractors, and property developers. We operate on a custom-order model: we fabricate to your specifications, not to our catalog. Dimensions, glass types, finishes, hardware choices, and packaging requirements are all negotiable at the quotation stage.

For GLW70 specifications, pricing, and project consultation, contact Qingdao Honor Building Products. Visit our Alibaba.com storefront or reach out directly.
